Mastering terahertz waves

Research is paving the way for the practical use of terahertz waves in telecommunications.

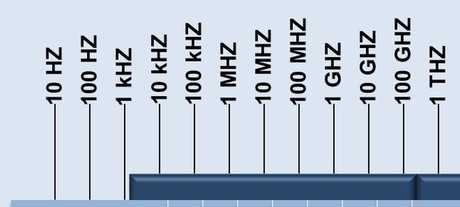

The terahertz band spans the range between infrared and gigahertz frequencies. However, the use of terahertz waves is severely limited by the absence of suitable devices and materials to control them.

Researchers at the University of Geneva (UNIGE), working with the Federal Polytechnic School in Zurich (ETHZ) and two Spanish research teams, have developed a technique based on the use of graphene, which allows for the potentially very quick control of both the intensity and the polarisation of terahertz emissions.

The discovery, presented in Nature Communications, paves the way for a practical use of terahertz waves, in particular for imaging and telecommunications.

Graphene is a single atomic layer of carbon atoms that form a honeycomb network. It is found for example in graphite, the main constituent of pencil rods.

In the Department of Quantum Matter Physics of UNIGE’s Faculty of Sciences, Alexey Kuzmenko’s team has been working on graphene’s physical properties for several years.

“The interaction between terahertz radiation and the electrons in graphene is very strong and we have therefore come to the hypothesis that it should be possible to use graphene to manage terahertz waves,” said Kuzmenko.

Working within the framework of the European Graphene Flagship project, scientists have made a graphene-based transistor adapted to terahertz waves.

“By combining the electrical field, which enables us to control the number of electrons in graphene and thus allows more or less light to pass through, with the magnetic field, which bends the electron orbits, we have been able to control not just the intensity of the terahertz waves, but also their polarisation,” said Jean-Marie Poumirol, a member of the UNIGE research team and the first author of the study.

“It is rare that purely electrical effects are used to control magnetic phenomena.”

With this, researchers are now able to apply such control over a complete range of terahertz frequencies.

Diagram showing how the terahertz system works, and size comparison between a coin and the electronic chip

Practical applications

The UNIGE team’s focus is to move on from the prototype and develop practical applications and new opportunities by controlling terahertz waves. Their objective is to make terahertz waves industrially competitive in the next few years.

There are two main areas of application, the first being communications.

“Using a film of graphene associated with terahertz waves, we should be potentially able to send fully secured information at speeds of about 10 to 100 times faster than with Wi-Fi or radio waves, and do it securely over short distances,” explained Poumirol.

This would present a significant advantage in telecommunications.

The second sphere of application is that of imaging. Being non-ionising, terahertz waves do not alter DNA and therefore are very useful in medicine, biology and pharmacy. Additionally, the control of the circular polarisation of the terahertz waves will allow distinction between different symmetries (left-handed or right-handed) of biological molecules, which is a very important property in medical applications.

There is also potential to apply these terahertz waves in security.

“Terahertz waves are stopped by metals and are sensitive to plastics and organic matter,” said Kuzmenko. “This could lead to more effective means of detecting firearms, drugs and explosives carried by individuals, and could perhaps serve as a tool to strengthen airport safety.”

Information courtesy UNIGE. Images courtesy UNIGE and NIST.
